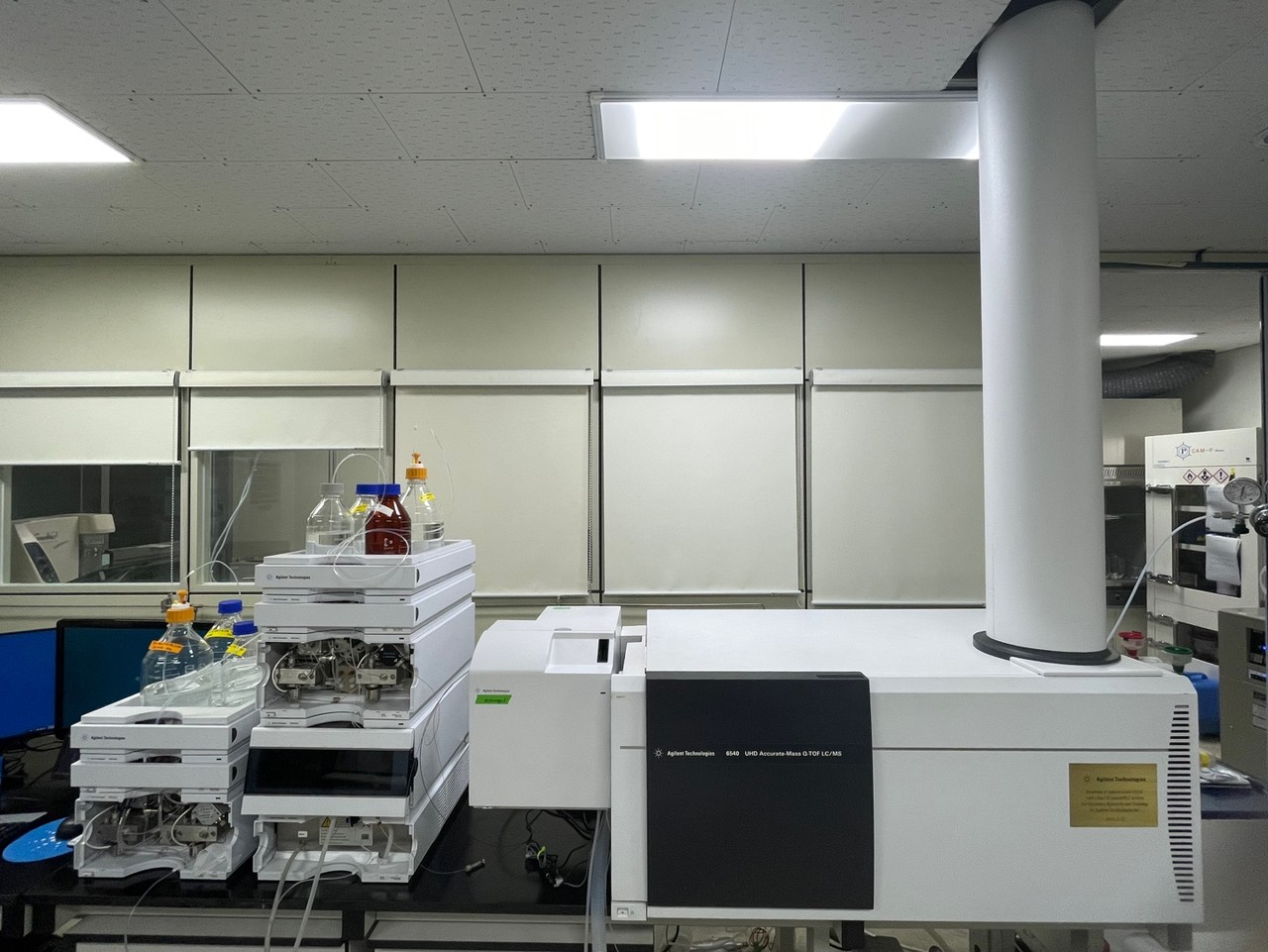

Agilent 6540 Accurate Mass Nano LC-chip
Q-TOF MS system


LC-MS/MS

액체 크로마토그래피 질량분석기


- Absolute quantitative analysis for small molecules using MRM and    dynamic MRM

- Glycan, HMOs, and metabolite analysis



Mass accuracy 1 ppm (MS) / 2 ppm (MS/MS)
Mass resolution 25,000 at 322 m/z / 42,000 at 2,722 m/z
Dynamic range5.0 orders
Mass range 100-10,000 m/z
Tandem MSCID, MS2
Resolution1pg
DetectorHigh-energy conversion dynode and high-gain electron multiplier horn

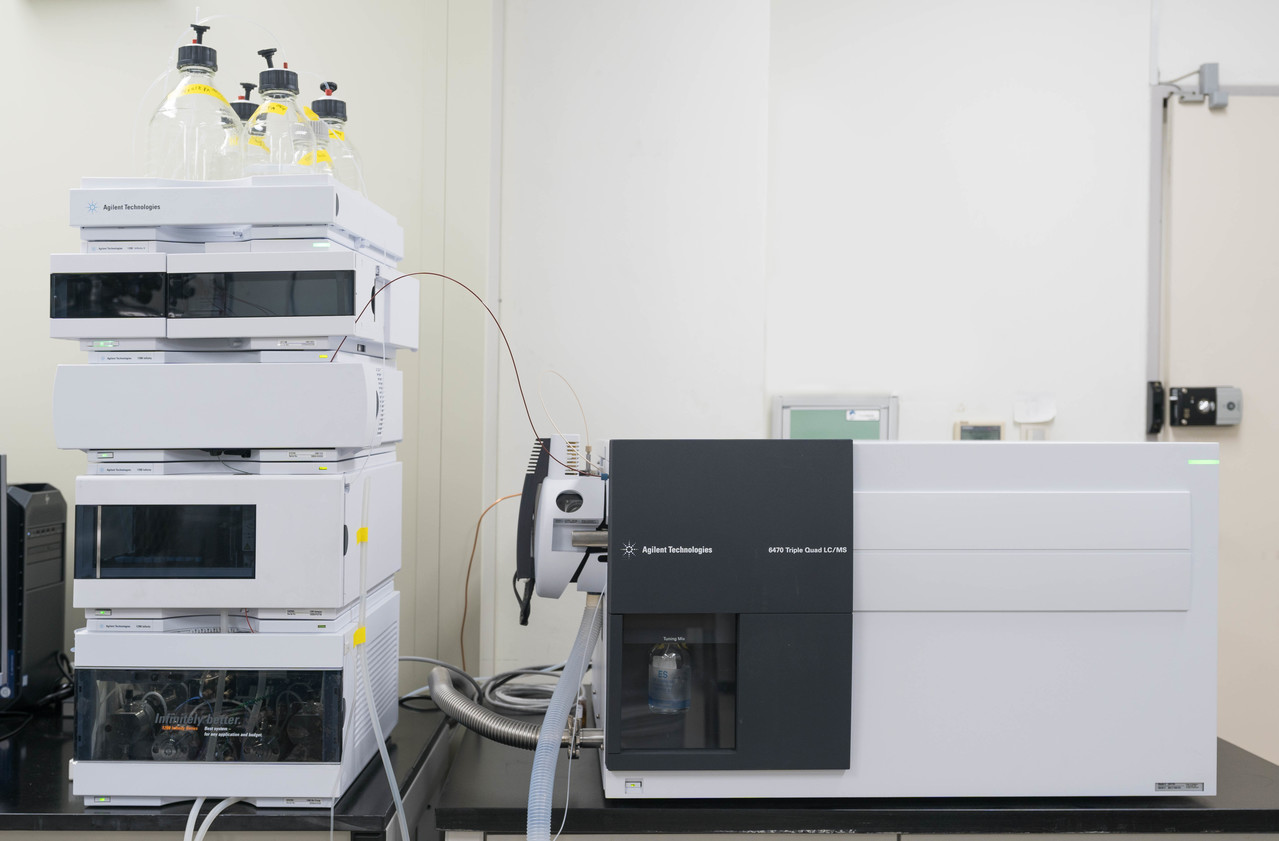

Agilent 6470 UPLC-Triple Quadruple LC/MS

LC-MS/MS

액체 크로마토그래피 질량분석기


- Absolute quantitative analysis for small molecules using MRM and    dynamic MRM

- Glycan, HMOs, and metabolite analysis



Mass accuracy0.1-0.3 Dalton (5-3,000m/z)
Mass resolution 0.5~0.7 Dalton (tune)
Dynamic range >6.0 x 106
Mass range 5-3,000 m/z
Tandem MSScan, SIM, PIS, MRM
Inoization source Agilent Jetstrem Electrospray ionization (AJS ESI)
DetectorElectron Multiplier

Agilent 6460 UPLC-Triple Quadruple LC/MS


LC-MS/MS

액체 크로마토그래피 질량분석기


기기명 : 6460 UPLC-LC/MS


- Absolute quantitative analysis for small molecules using MRM and    dynamic MRM

- Glycolipid and metabolite analysis

Mass accuracy0.1 Dalton (5-1,000m/z)
Mass resolution0.5~0.7 Dalton (tune)
Dynamic range >6.0 x 106
Mass range 5-3,000 m/z
Tandem MSScan, SIM, PIS, MRM
Inoization source Agilent Jetstrem Electrospray ionization (AJS ESI)
DetectorElectron Multiplier

Agilent 6430 UPLC-Triple Quadruple LC/MS


LC-MS/MS

액체 크로마토그래피 질량분석기


기기명 : 6460 UPLC-LC/MS


- Absolute quantitative analysis for small molecules using MRM and    dynamic MRM

- Peptides, amino acids, and food components analysis

Mass accuracy0.1 Dalton (5-1,000m/z)
Mass resolution0.5~0.7 Dalton (tune)
Dynamic range >6.0 x 106
Mass range 5-2,250 m/z
Tandem MSScan, SIM, PIS, MRM
Inoization source Agilent Jetstrem Electrospray ionization (AJS ESI)
DetectorElectron Multiplier
